Assemble TSP-40 man portable drilling rig in Pakistan

Brand Name : TS

Model Number : 3D seismic shothole portable drilling rig

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : meet

Payment Terms : T/T L/C

Delivery Time : 3 months

Packaging Details : plywood case

Contact Now

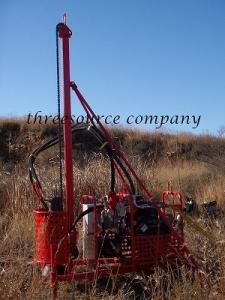

This is the type drilling rig we exported to Pakistan OGDCL company.

http://www.iqiyi.com/w_19rtn9o2y1.html Here is a video of drilling in Pakistan

If you need our products, contact or check on line.

Or email me directly:3123981177@163.com

New Design portable drilling rig with light weight! The most popular drilling rig at present!

The drilling rig can work in the mountainous region, the loess plateau, the jungle, Gobi, the seasonal farmland and so on complex area carries on the petroleum, the geological mine seismic survey well drilling construction, best working conditions temperature 0℃~40℃(Max. temperature is no more than 55℃), below altitude 2000 meters.

Drilling method	Air hammer drilling
Drilling method	Air drilling
Drilling depth	Air hammer drilling	40 m
Drilling depth	Air drilling	40 m
Drilling hole diameter		80mm
Drilling pipe	Diameter X Length	Φ60X1500mm (Air drilling pipe)
Power swivel	Rated torque	1300N.m
Power swivel	Rotation speed range	0-130r/min
Pulldown & hoisting system	Pull up & pull down capacity	2000kg
	Pulldown force	5.5kN
	Max hoisting speed	0.73m/s
Hydraulic system	Working pressure	20MPa
Engine	Output power	27hp/3600r/min (Gasoline engine)
